AI Multifunction Grains Quality Sorter - SH PLUS Series
Better identification/deeper understanding/one machine with multiple functions/complete system impurity removal!

It significantly improves the removal efficiency of fungal toxins, allergens, and foreign objects;

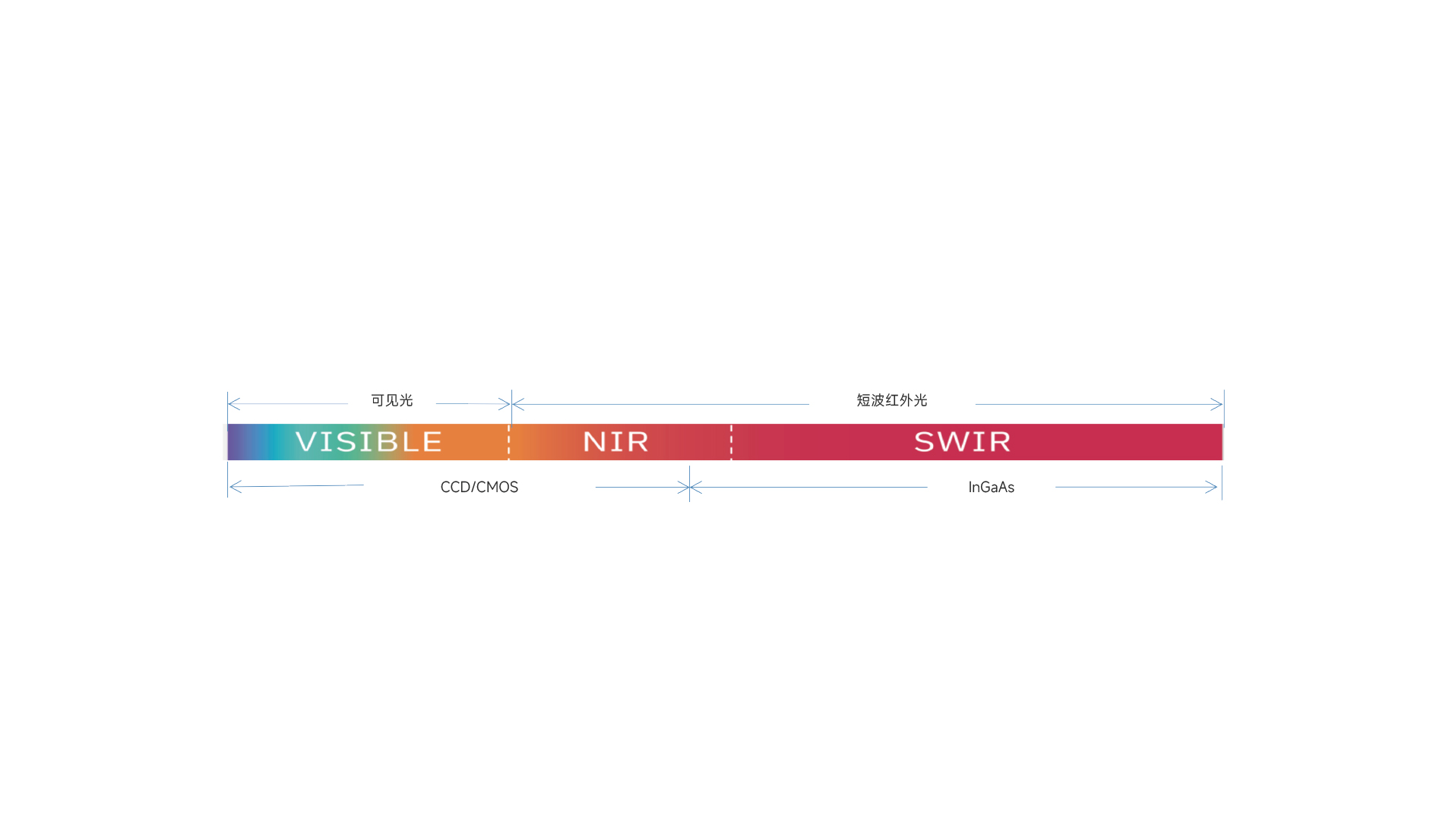

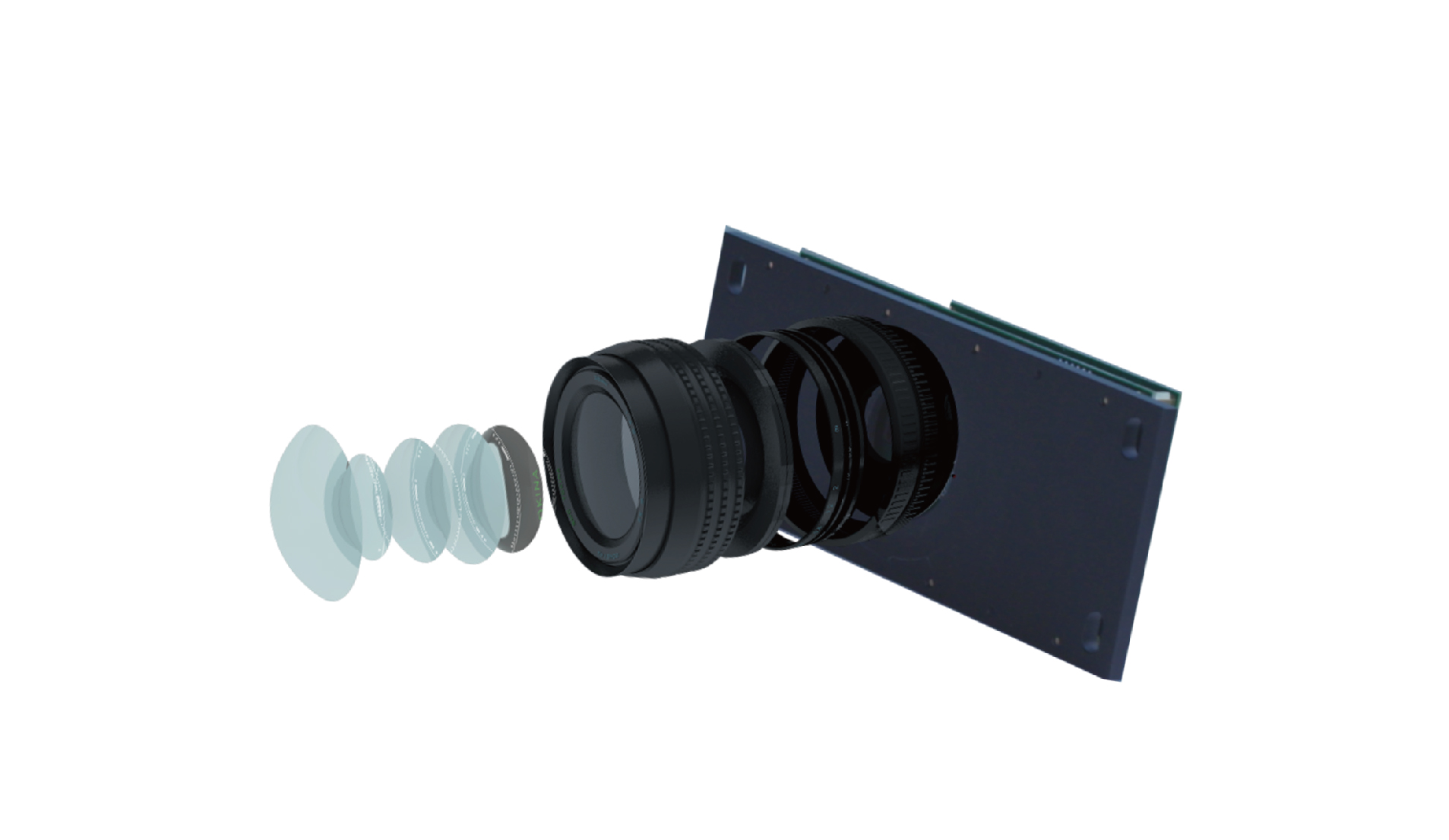

It can accurately identify subtle differences in color, shape, size, and material and remove unwanted materials to meet different material characteristics, impurities, and quality requirements;

PLOV platform technology 2.0 maintains even falling and soft landing of materials in high output and high speed sorting scenarios;

Intelligent independent dust treatment system ensures continuous and stable sorting performance under complex working conditions;

Equipped with Jiexun cloud control system, the production line is moving towards intelligence and unmanned operation.

Model:
  • SH3 Plus

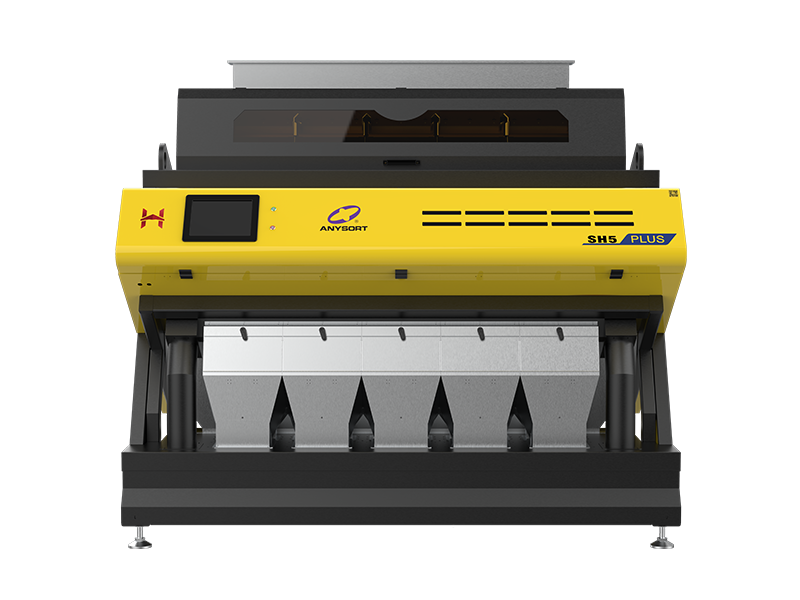

  • SH5 Plus

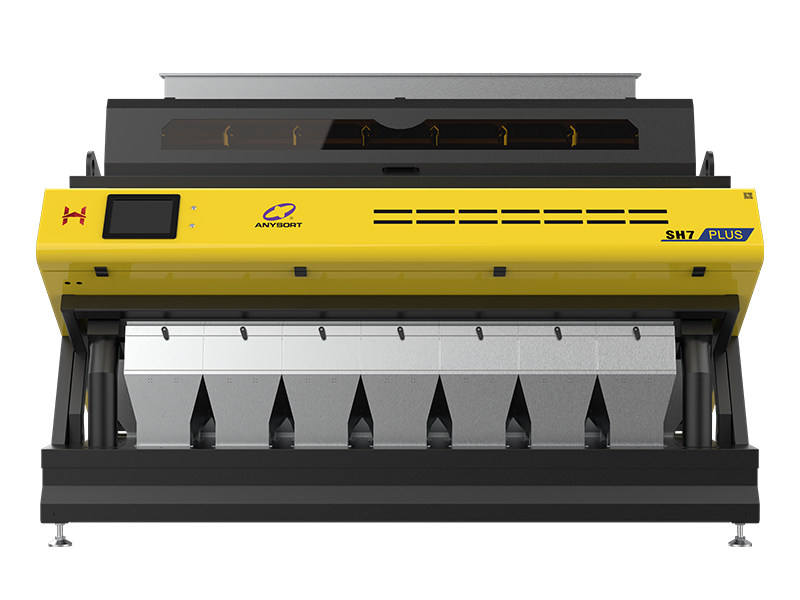

  • SH7 Plus

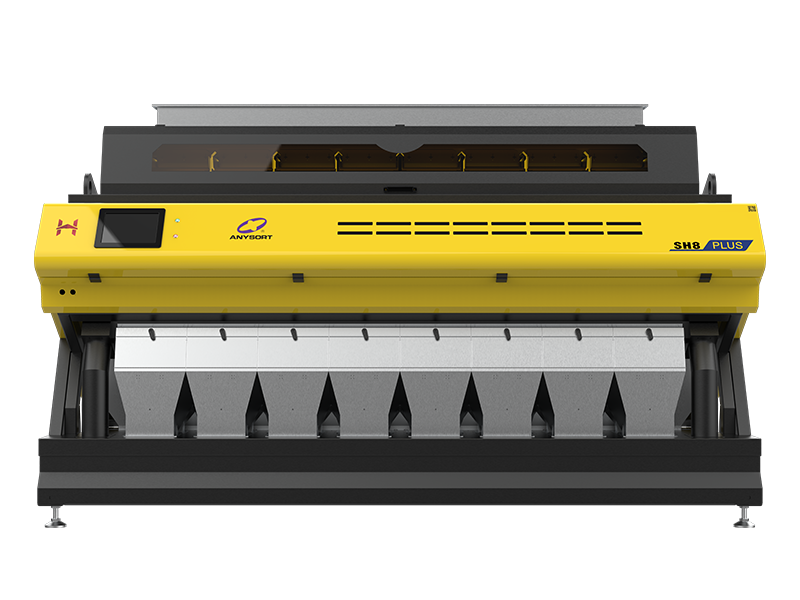

  • SH8 Plus
  • SH10 Plus
  • SH12 Plus
  • SH12R Plus
Obtain proposals and quotations:0086-551-64266956

It significantly improves the removal efficiency of fungal toxins, allergens, and foreign objects;

It can accurately identify subtle differences in color, shape, size, and material and remove unwanted materials to meet different material characteristics, impurities, and quality requirements;

PLOV platform technology 2.0 maintains even falling and soft landing of materials in high output and high speed sorting scenarios;

Intelligent independent dust treatment system ensures continuous and stable sorting performance under complex working conditions;

Equipped with Jiexun cloud control system, the production line is moving towards intelligence and unmanned operation.

Product Parameters
Model
Power(kw)
Power Supply(V/Hz)
Dimension L*W*H(mm)
Weight(kg)
Throughput(t/h)
Accuracy(%)
Carryover Ratio
SH3 Plus
SH5 Plus
2.6(Impurities Ratio 10%)
220V/50Hz
2550*1760*2135
1400
3-15
≥99.99
>100:1
SH7 Plus
3.5(Impurities Ratio 10%)
220V/50Hz
3230*1760*2135
1810
5-21
≥99.99
>100:1
SH8 Plus
3.9(Impurities Ratio 10%)
220V/50Hz
3570*1760*2135
2030
2030
≥99.99
>100:1

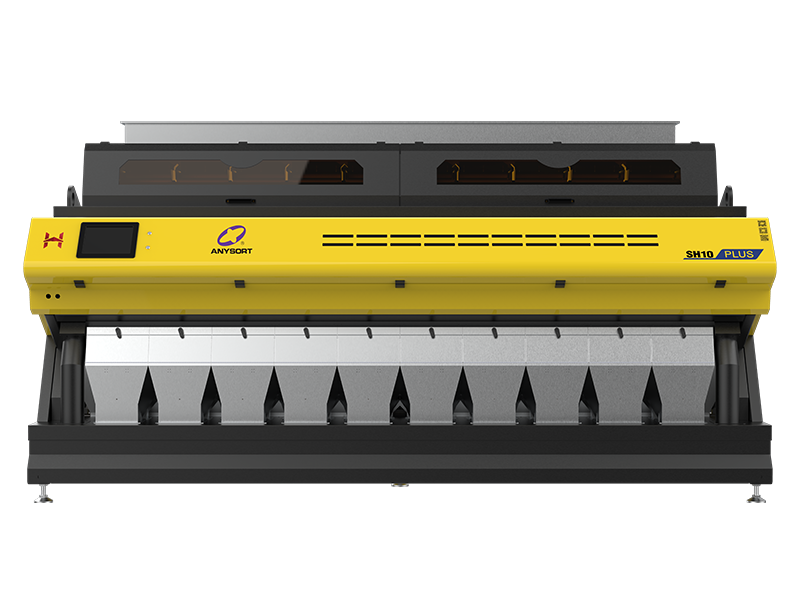

SH10 Plus
5(Impurities Ratio 10%)
220V/50Hz
4150*1760*2135
2900
7-30
≥99.99
>100:1

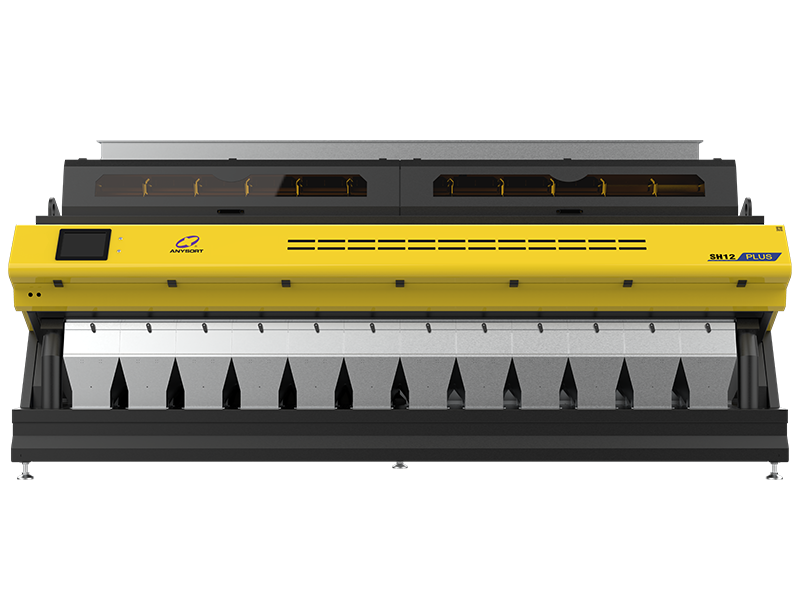

SH12 Plus
5.9(Impurities Ratio 10%)
220V/50Hz
4830*1760*2135
3400
7-30
≥99.99
>100:1
SH12R Plus
6.9(Impurities Ratio 10%)
220V/50HZ
4830*1760*2135
3400
7-30
≥99.99
>100:1
