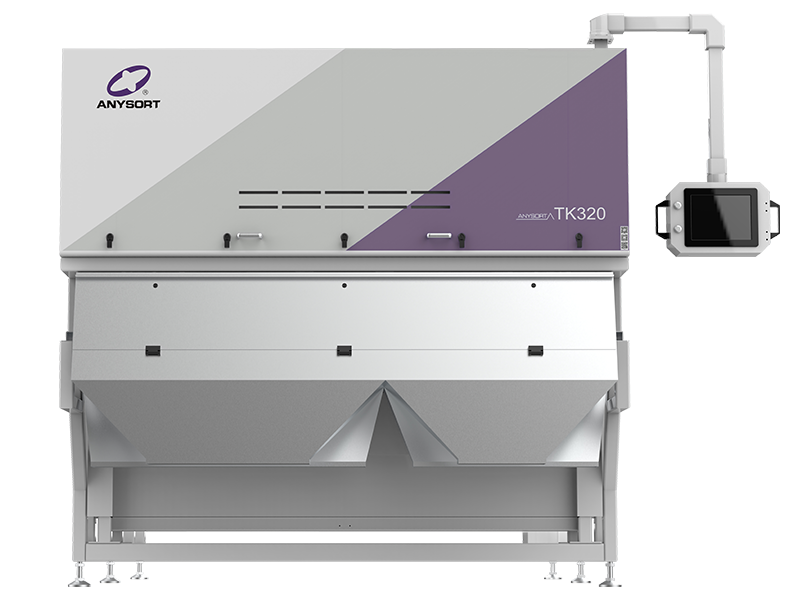

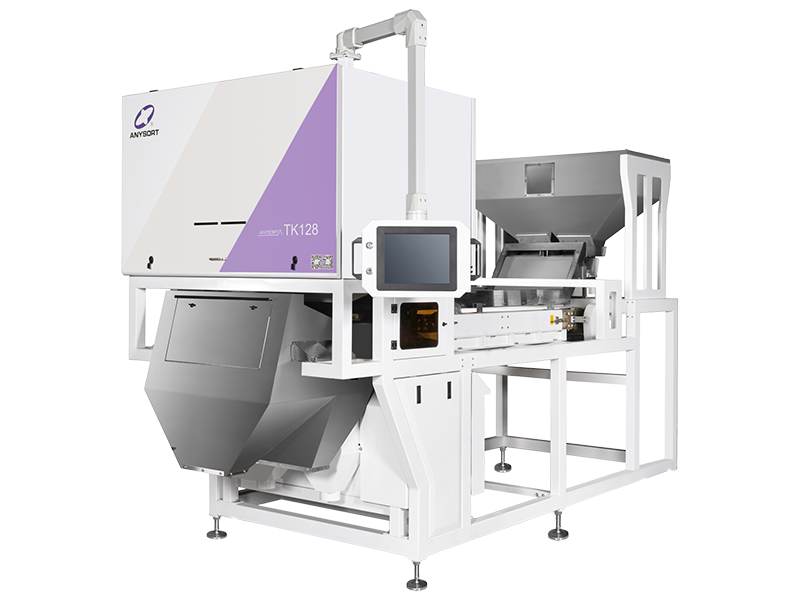

TK Series Peanut Cloud Quality Sorter
One time removal of peanuts with buds, impurities, moldy kernels; Cloud quality sorting with grading, non-damage, high output

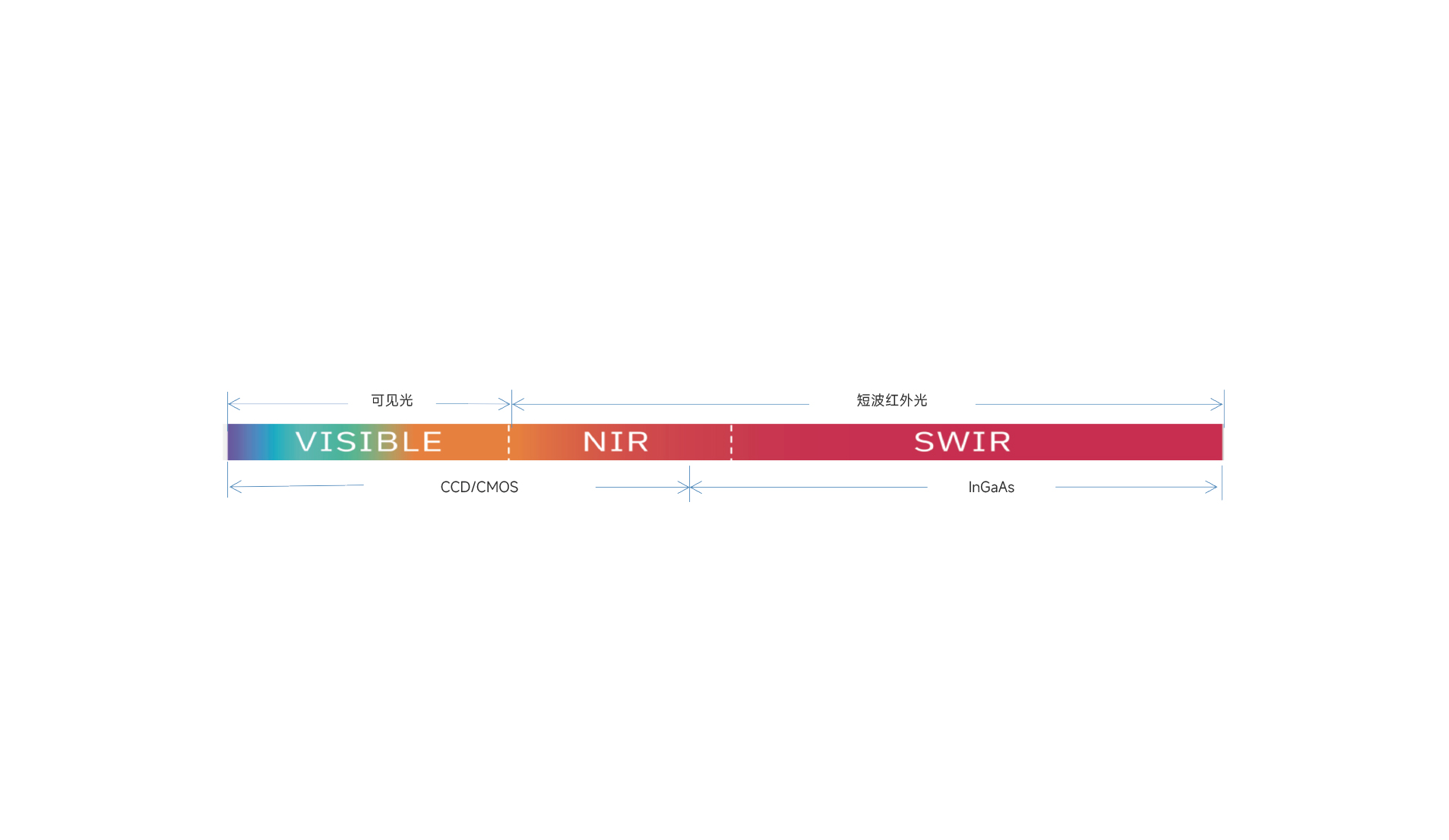

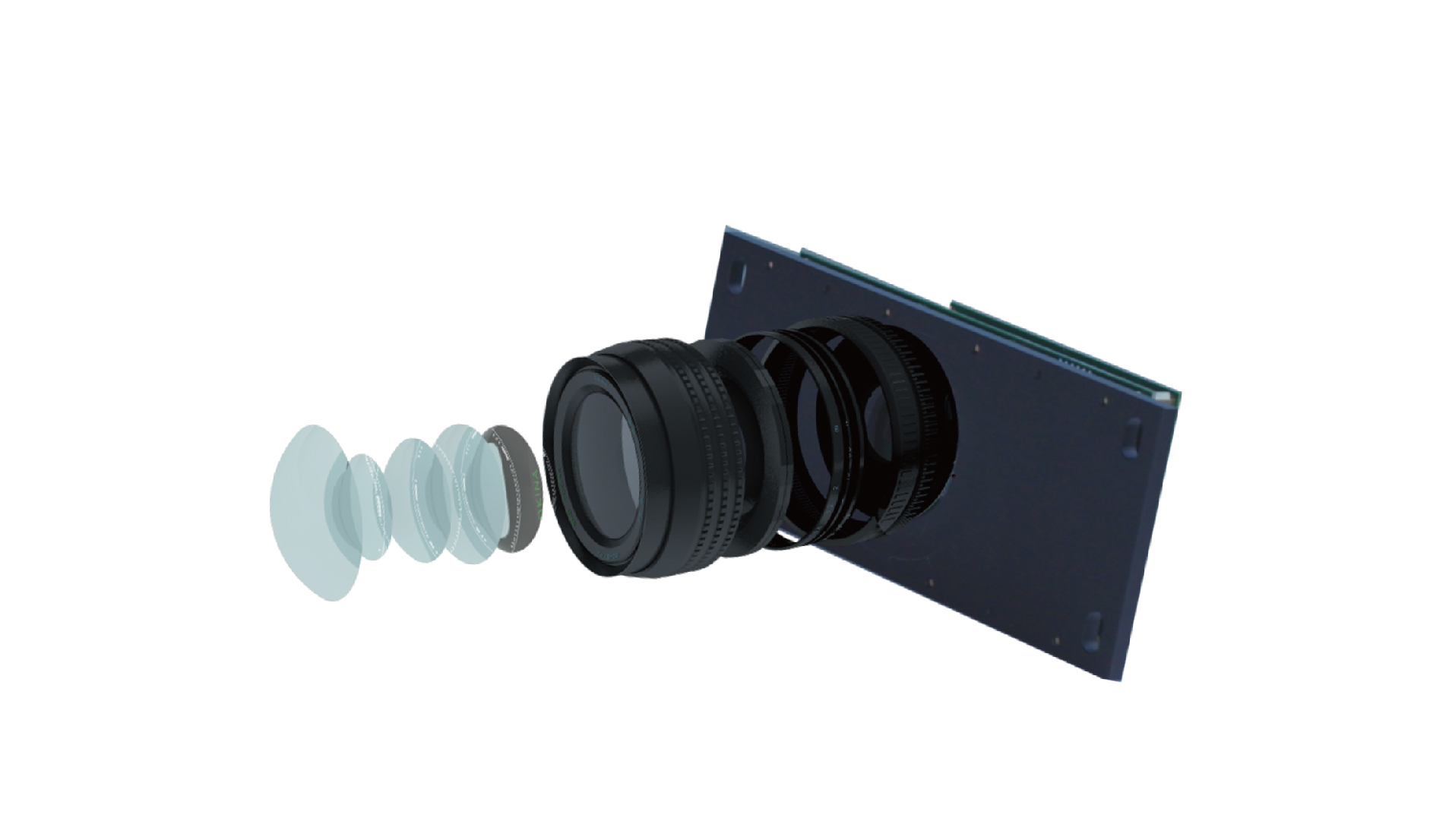

Hawkeye camera technology accurately identifies subtle differences in color and shape of materials;

Based on quality sorting massive data model, it can effectively sort kernels, shells, as well as various foreign objects and color defects to improve consistency of product quality;

PLOV physical structure technology achieves efficient sorting and grading, higher output and high precision.

Model:
  • TK64
  • TK128
  • TK192
  • TK256
  • TK320
  • TK384
Obtain proposals and quotations:0086-551-64266956

Hawkeye camera technology accurately identifies subtle differences in color and shape of materials;

Based on quality sorting massive data model, it can effectively sort kernels, shells, as well as various foreign objects and color defects to improve consistency of product quality;

PLOV physical structure technology achieves efficient sorting and grading, higher output and high precision.

Product Parameters
Model
Power(kw)
Power Supply(V/Hz)
Dimension L*W*H(mm)
Weight(kg)
Throughput(t/h)
Accuracy(%)
Carryover Ratio

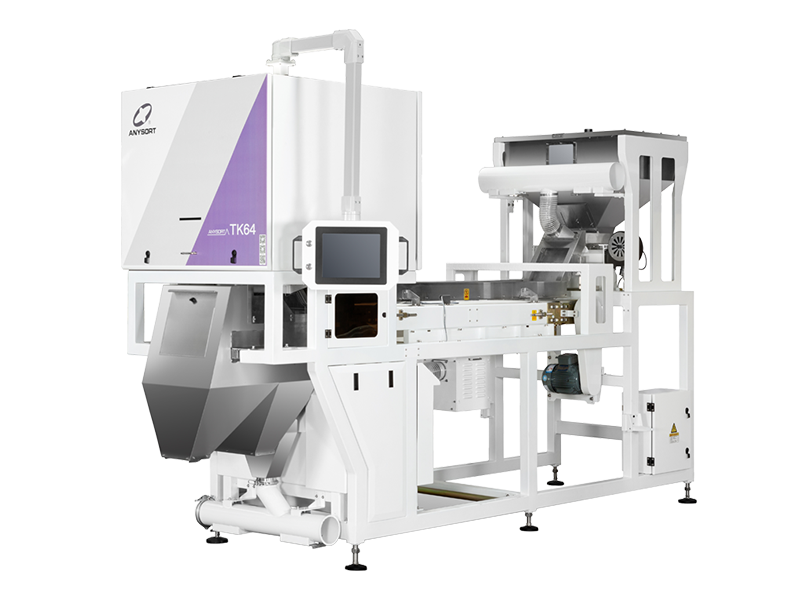

TK64
2.4(Impurities Ratio 10%)
380V/50Hz
3650*1080*2450(with Air Filters)
610
0.5-2.0
≥99.50
>30:1
TK128
2.7(Impurities Ratio 10%)
380V/50Hz
3650*1400*2450(with Air Filters)
1320
0.5-2
≥99.50
>30:1
TK192
4.0(Impurities Ratio 10%)
380V/50Hz
3650*1720*2450(with Air Filters)
1692
0.5-3
≥99.50
>30:1

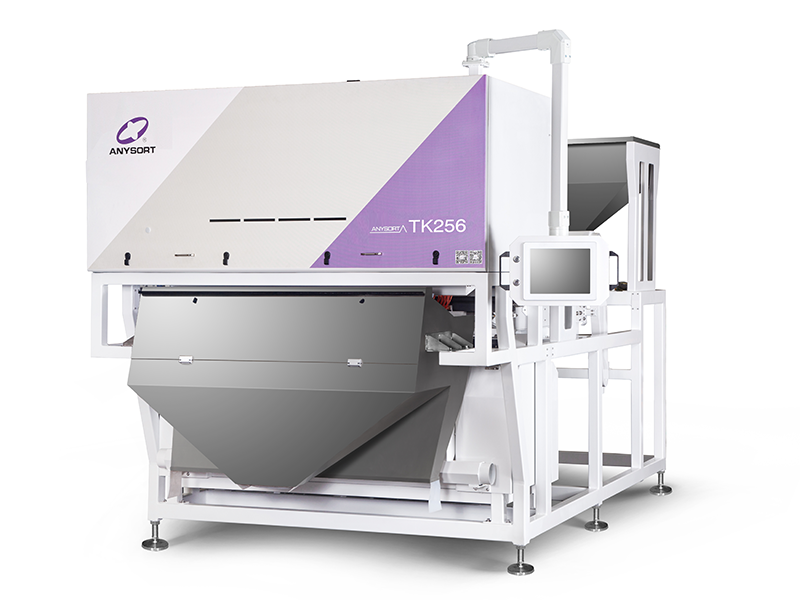

TK256
4.3(Impurities Ratio 10%)
380V/50Hz
3650*2040*2450(with Air Filters)
2130
1.5-12
≥99.50
>30:1
TK320
5.3(Impurities Ratio 10%)
380V/50Hz
3655*2380*2450(with Air Filters)
2550
1.5-16
≥99.50
>30:1

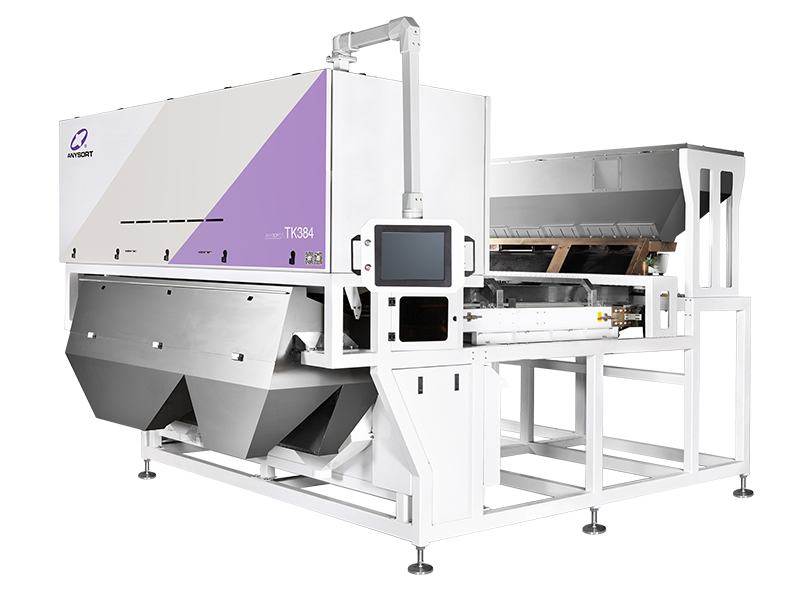

TK384
5.8(Impurities Ratio 10%)
380V/50Hz
3650*2680*2450(with Air Filters)
2950
2.0-18
≥99.50
>30:1
