TK-L Series Cloud Quality Sorter
Customized and asset-light

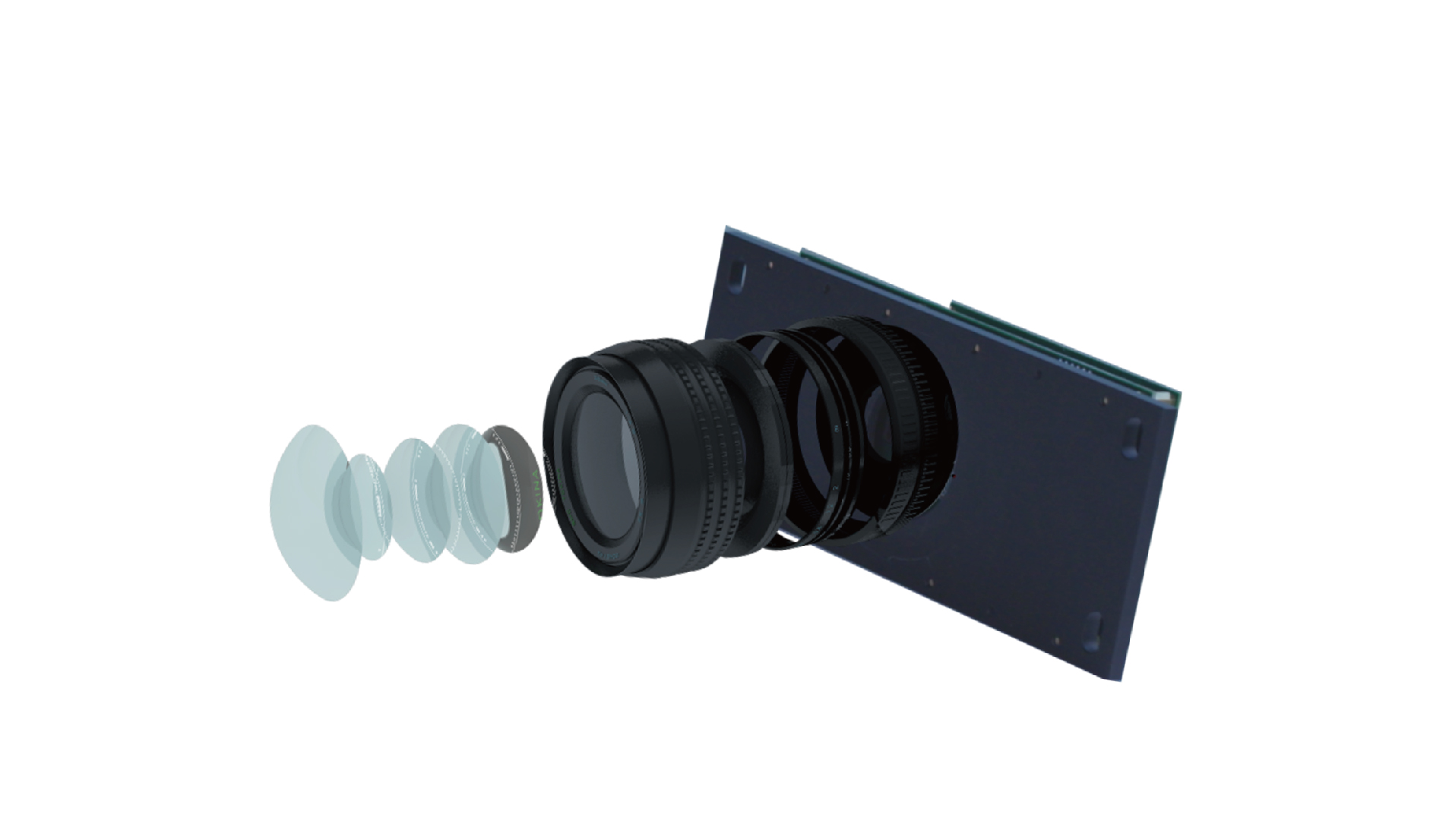

Hawkeye camera technology accurately identifies subtle differences in color and shape of materials;

PLOV physical structure technology achieves efficient sorting and grading, higher output and high precision;

Based on quality sorting massive data model, it can effectively sort kernels, shells, as well as various foreign objects and color defects to improve consistency of product quality.

Model:
  • TK128L
  • TK192L
  • TK256L
  • TK320L
  • TK384L
Obtain proposals and quotations:0086-551-64266956

Hawkeye camera technology accurately identifies subtle differences in color and shape of materials;

PLOV physical structure technology achieves efficient sorting and grading, higher output and high precision;

Based on quality sorting massive data model, it can effectively sort kernels, shells, as well as various foreign objects and color defects to improve consistency of product quality.

Product Parameters
Model
Power(kw)
Power Supply(V/Hz)
Dimension L*W*H(mm)
Weight(kg)
Throughput(t/h)
Accuracy(%)
Carryover Ratio

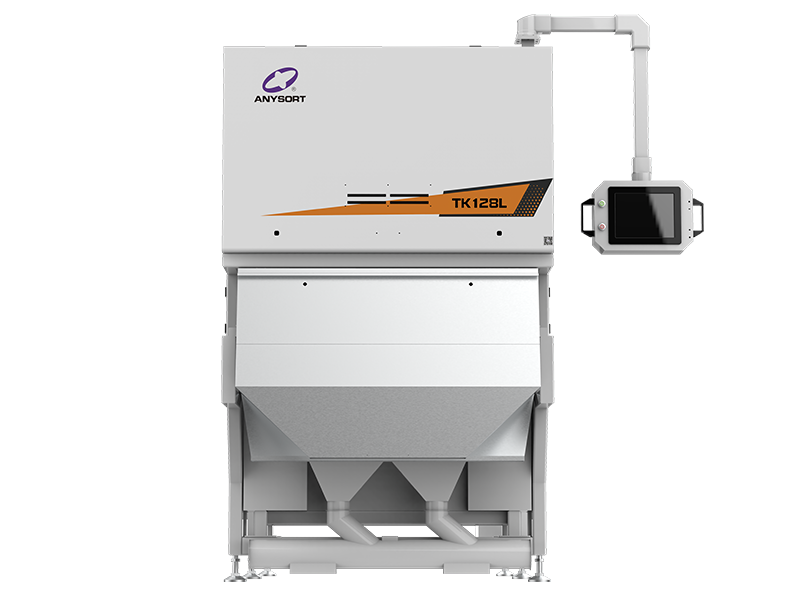

TK128L
2.7(Impurities Ratio 10%)
380V/50Hz
3650*1400*2450(with Air Filters)
1120
0.5-2
≥99.50
>30:1

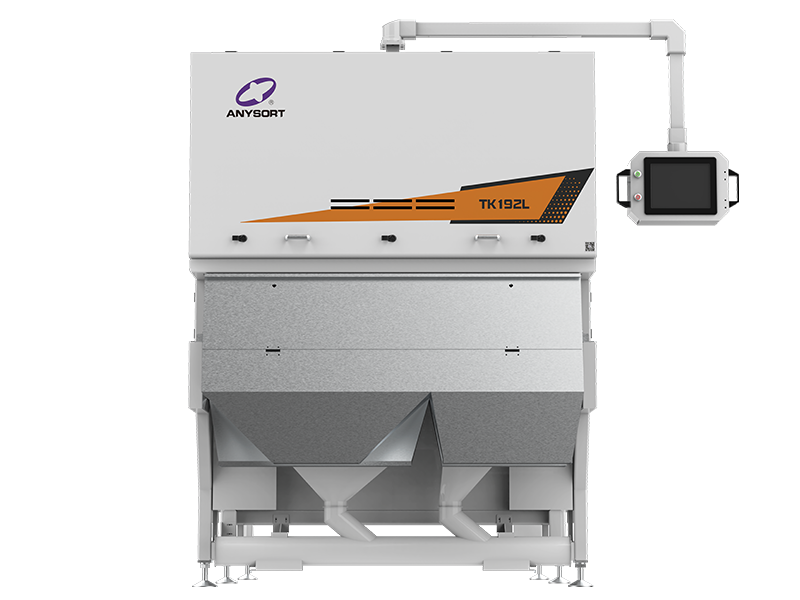

TK192L
4.0(Impurities Ratio 10%)
380V/50Hz
3650*1720*2450(with Air Filters)
1390
0.5-3
≥99.50
>30:1

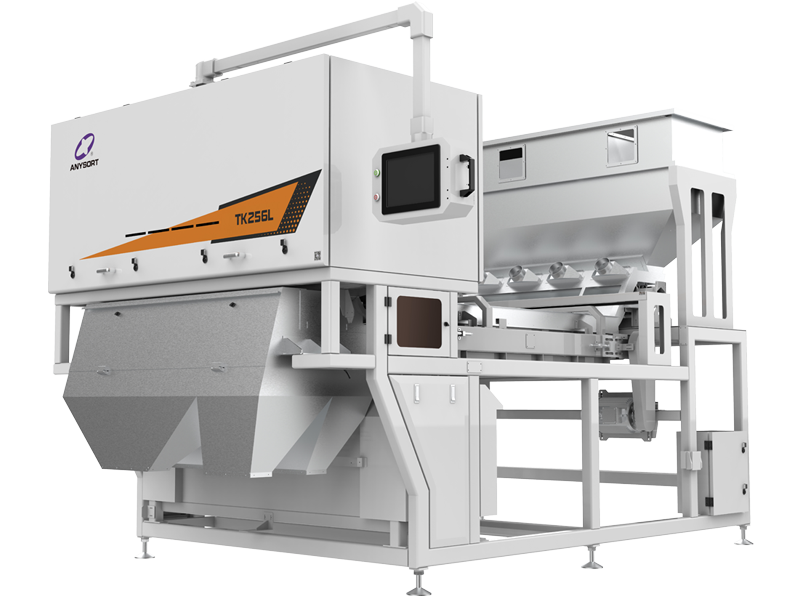

TK256L
4.3(Impurities Ratio 10%)
380V/50Hz
3650*2040*2450(with Air Filters)
1730
1.5-12
≥99.50
>30:1
TK320L
5.3(Impurities Ratio 10%)
380V/50Hz
3655*2380*2450(with Air Filters)
2050
1.5-16
≥99.50
>30:1
TK384L
5.8(Impurities Ratio 10%)
380V/50Hz
3650*2680*2450(with Air Filters)
2350
2.0-18
≥99.50
>30:1
